General fixing conveyor belt

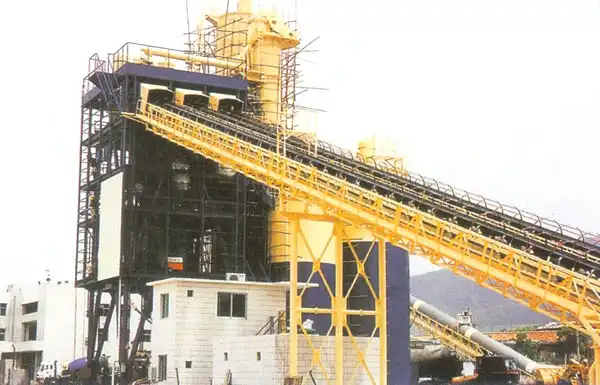

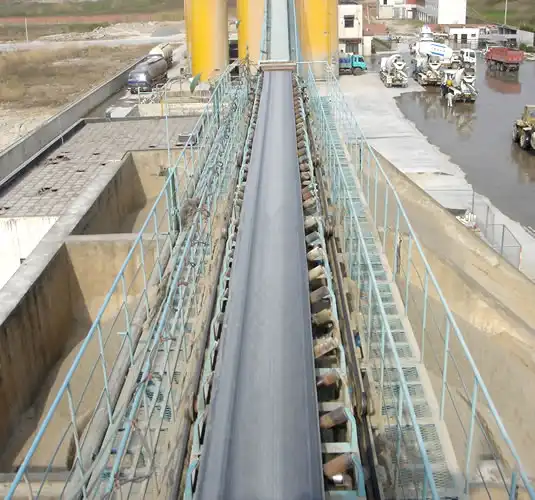

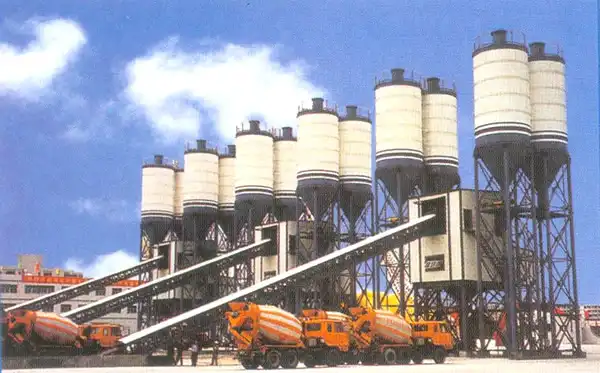

Widely used for transportation of loose materials or finished products for department such as metallurgy, coal, water and electricity, mechantronics, chemical industry and traffic etc. It can adopt one set or more or combine with other conveyors to transport horizontally or slantways. Product model: ZJT1-86, TD75, QD80 and DTII
Maximum transportation volume list:

Thoth in the form	Belt speed(m/s)	Bandwidth(mm)
		500	650	800	1000	1200
		Trough roller
Trough roller	0.8	78	131	-	-	-
	1.0	97	164	278	435	655
	1.25	122	206	348	544	819
	1.6	156	264	445	696	104
	2.0	191	323	546	853	1284
Flat-shaped roller	0.8	41	67	118	-	-
	1.0	52	88	147	230	345
	1.25	66	110	184	288	432
	1.6	84	142	236	368	553
Power range(KW)		1.5~30	1.5~40	2.2~75	3~100	4~185
