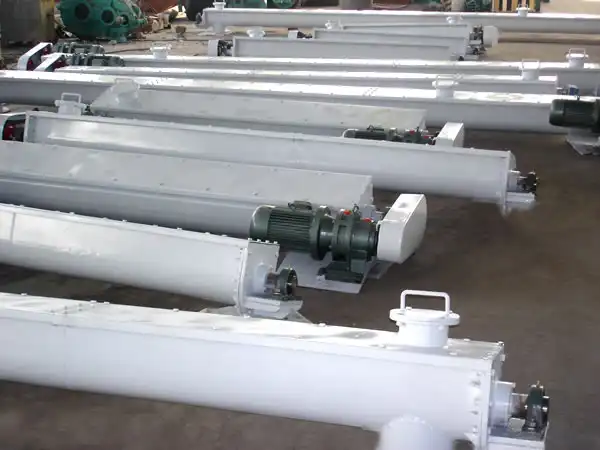

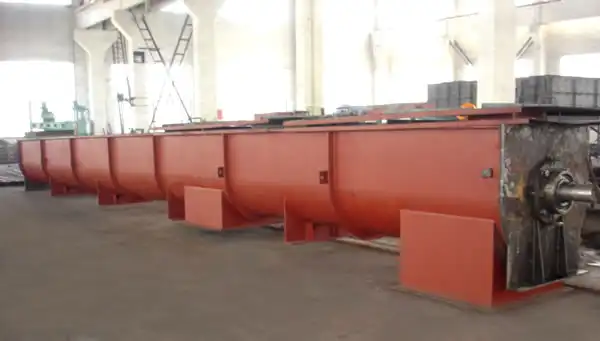

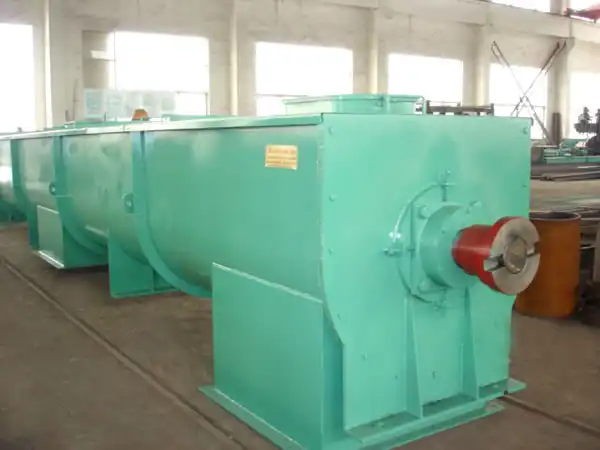

Spiral conveyor adopts rotating leptospira to make materials move along with fixing groove of machine shell for transportation with seal transmission and simple structure.
Spiral conveyor diameter series Model LS
Model |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
Spiral diameter(mm) |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
Pitch (mm) |
100 |
125 |
160 |
200 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
630 |
Recommended max rotating speed of main shaft(r/min) |
190 |
170 |
150 |
130 |
120 |
105 |
95 |
85 |
75 |
67 |
60 |
53 |
LS-type screw conveyor technical parameters
Spiral diameter(mm) |
Conveyor at different speeds throughput |
n(r/min) |
Q(m3/h) |
n(r/mln) |
Q(m3/h) |
n(r/min) |
Q(m3/h) |
n(r/min) |
Q(m3/h) |
160 |
130 |
8.6 |
85 |
6 |
67 |
5 |
47.5 |
3.1 |
200 |
105 |
13 |
85 |
10 |
60 |
8 |
47.5 |
6.2 |
250 |
95 |
22 |
75 |
18 |
60 |
14 |
47.5 |
11 |
315 |
85 |
31 |
60 |
24 |
53 |
19 |
40 |
15.4 |
400 |
75 |
62 |
60 |
49 |
47.5 |
39 |
31.5 |
31 |
500 |
60 |
98 |
53 |
78 |
40 |
62 |
31.5 |
50 |
