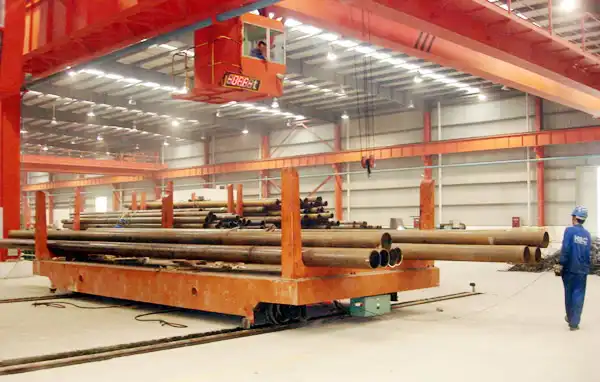

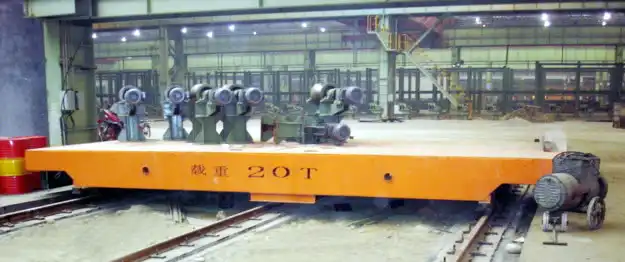

Electrical flat vehicle Series KP is suitable for long-distance driving, curve or circling driving, turnoff driving for transportation of materials inside of workshop or between different workshops.
Electrical flat vehicle Series KP adopts voltage of power 380V and low-voltage 36V. There are three methods to provide power: drawing wire, sliding lead and coiling wire. Single-phase low-voltage is used for power-supply flat vehicles with two straight tracks for feeder as well. Three-phase low-voltage power-supply flat vehicle is added with a ground feeder between two tracks. It could also provide automatic track breaking telecontrol brake equipments if needed. Electrical flat vehicle Series KP
Technical specification
Name |
KPD Series |
Model |
KPD-6-2 |
KPD-10-2 |
KPD-6-1 |
KPD-10-1 |
KPD-16-1 |
KPD-25-1 |
KPD-40-1 |
KPD-63-1 |
KPD-100-1 |
Load(t) |
6 |
10 |
6 |
10 |
16 |
25 |
40 |
63 |
100 |
Table size(mm) |
Table size(mm) |
1600 |
2000 |
2200 |
2500 |
2800 |
Long |
3200 |
3600 |
4000 |
4500 |
5000 |
5600 |
6300 |
High |
520 |
650 |
700 |
850 |
900 |
Clearance from the bottom of the track surface(mm) |
50 |
60 |
Speed(m/min) |
30 |
25 |
20 |
Motor Power(KW) |
2.2 |
3.5 |
5 |
7.5 |
Gauge(mm) |
762 |
1435 |
Weight(t) |
2.0 |
2.1 |
2.2 |
2.4 |
3.6 |
4.2 |
6 |
8.6 |
11.1 |
Coiling-wire electrical flat vehicle Series KP Technical specification
Name |
KP Series |
Model |
KP(Volume)-6-2 |
KP(Volume)-10-2 |
KP(Volume)-6-2 |
KP(Volume)-10-1 |
KP(Volume)-16-1 |
KP(Volume)-25-1 |
KP(Volume)-40-1 |
KP(Volume)-63-1 |
KP(Volume)-100-1 |
Load(t) |
6 |
10 |
6 |
10 |
16 |
25 |
40 |
63 |
100 |
Table size(mm) |
Wide |
1600 |
2000 |
2200 |
2500 |
2800 |
Long |
3200 |
3200 |
4000 |
4500 |
5000 |
5600 |
6300 |
High |
520 |
650 |
700 |
850 |
900 |
Clearance from the bottom of the track surface(mm) |
50 |
60 |
Speed(m/min) |
30 |
25 |
20 |
Motor Power(KW) |
1.5 |
2.2 |
3.7 |
5.5 |
Gauge(mm) |
762 |
1435 |
Weight(t) |
2.0 |
2.1 |
2.2 |
2.4 |
3.6 |
4.3 |
6.0 |
8.6 |
11.1 |
